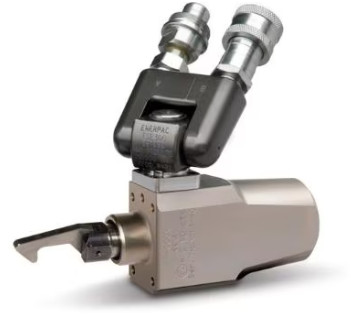

Low Profile Hydraulic Torque Wrench Drive Unit with Pro Series Swivel, 35000 ft. lbs Torque

SKU:
W35000PX
Sale
Was:
$9,660.00
$8,694.00
Low Profile Hydraulic Torque Wrench Drive Unit with Pro Series Swivel, 35000 ft. lbs Torque
Was:
$9,660.00
$8,694.00

Description

  • Fitted with the TSP swivel X-Edition hexagon hydraulic torque wrenches set a new standard in safety, simplicity and performance
  • Superior strength to size ratio provides easy access to difficult to reach applications without sacrificing endurance
  • 30° rotation angle and rapid return stroke provide fast operation
  • Tough manifold design with added safety feature for enhanced operator safety
  • Fast release drive unit enables rapid exchange of cassettes, no tools required
  • Quick and easy disassembly for maintenance without special tools
  • Includes robust handles which mount on both sides, and the tops of cassettes to allow for extra maneuverability
  • Available with optional enhanced tilt and swivel TSP300 manifold for horizontal and vertical maneuverability, with greater durability
  • X-Edition drive units, cassettes and most accessories are compatible with standard edition tools.
  • Drive unit compatible with UltraSlim and WCR-Series cassettes
  • Constant torque output provides accuracy of +/-3% across full stroke
  • ATEX declared. All W-Series X-edition drive units are CE - ATEX declared.
  •

Extra Information

Normal Torque Rated At:
10000psi 690 bar
Minimum Torque Rated At:
1000 psi 69 bar
Minimum Torque (Ft.lbs.):
3500
Minimum Torque (Nm):
4745
Hexagon Range (in):
3 1/8 - 6 1/8
Hexagon Range (mm):
80-155
Weight (lbs):
26.4
Maximum Torque Output (Ft.lbs):
35000
Maximum Torque Output (Nm):
47453
